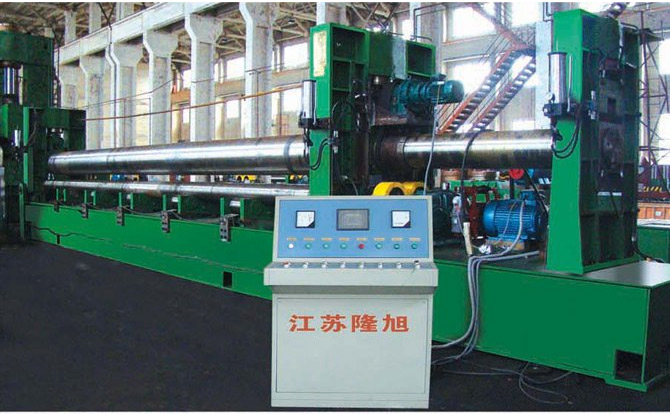

PERFORMANCE FEATURES:
1、The upper roller can make vertical elevation or horizontal shift.the vertical is a hydraulic driving, which is achieved
by the action of the oil in the hydraulic cylinder on the piston.
2、The horizontal shift is achieved through the torques from the laed screw
cabinet,worm and the structure of screw and worm, the lower roller only makes rotaion,providing torque for bending and
rolling,on the lower side of the lower roller, there is a support roller for adjustment,the upper roller is in drum shape
for enhancing the straightness of the products.
3、The machine is fit bending various cylinder bodies.
Technical parameter
|
規格型號 Model
|
上輥加壓力pressureon the uppe roller（Tons）
|
最大板厚Max. plate thickness（mm）
|
板幅 Plate width（mm）
|
上輥直徑 Diameter of upper roller（mm）
|
電動機 Motor（kW）
|
|
端曲End bending(mm)
|
中央 Center (mm)
|
驅動用 Driving
|
油壓用 Hydraulic
|
移動用 Shift
|
|
W11SNC-8x6000
|
130
|
6
|
8
|
6000
|
450
|
15
|
7.5
|
4
|
|
W11SNC-8x8000
|
160
|
8
|
8
|
8000
|
480
|
15
|
7.5
|
4
|
|
W11SNC-8x9000
|
190
|
8
|
9
|
9000
|
520
|
17.5
|
7.5
|
4
|
|
W11SNC-10x6000
|
160
|
10
|
10
|
6000
|
460
|
18.5
|
7.5
|
7.5
|
|
W11SNC-16x6000
|
270
|
16
|
16
|
6000
|
520
|
30
|
11
|
7.5
|
|
W11SNC-20x6000
|
320
|
20
|
20
|
6000
|
550
|
37
|
15
|
11
|
